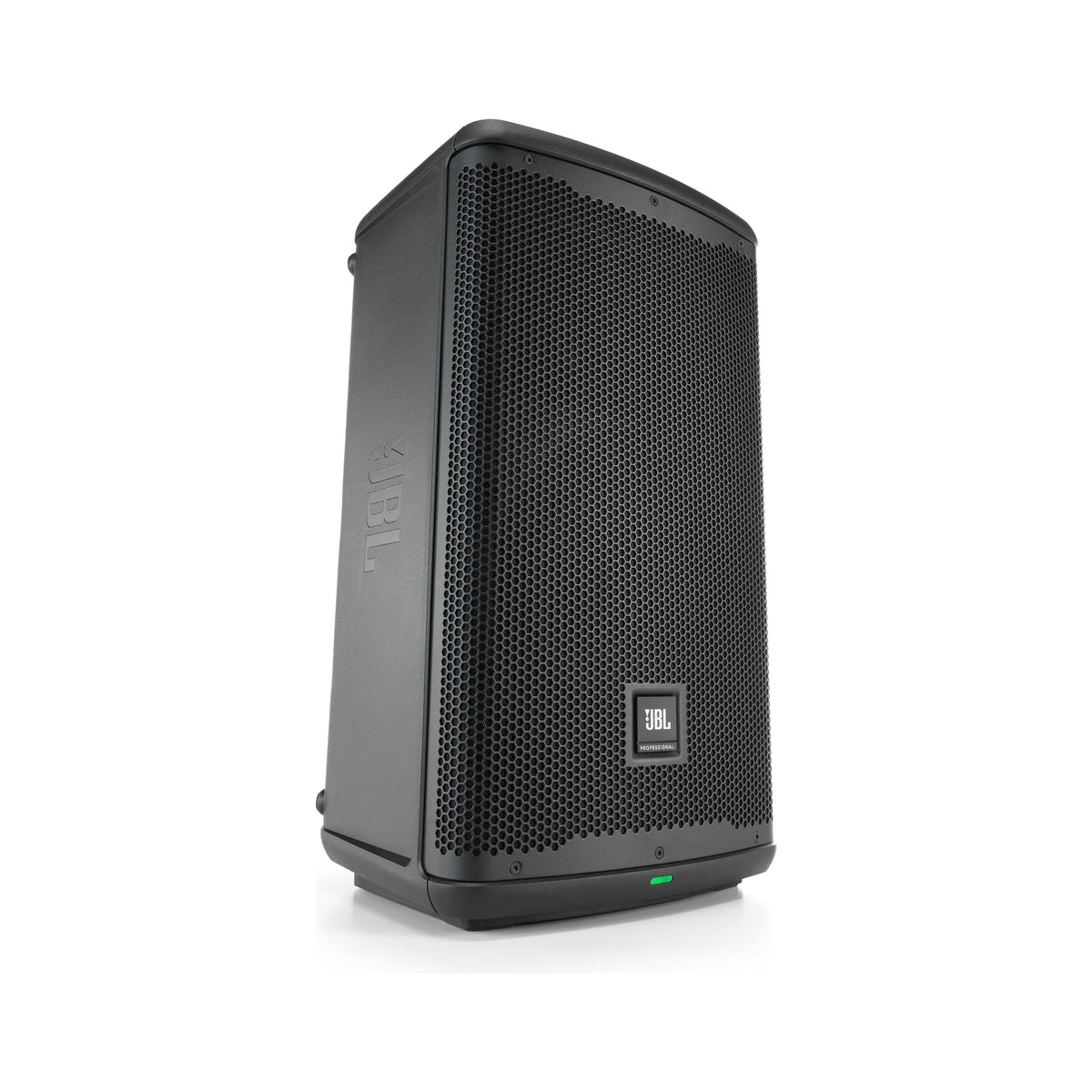

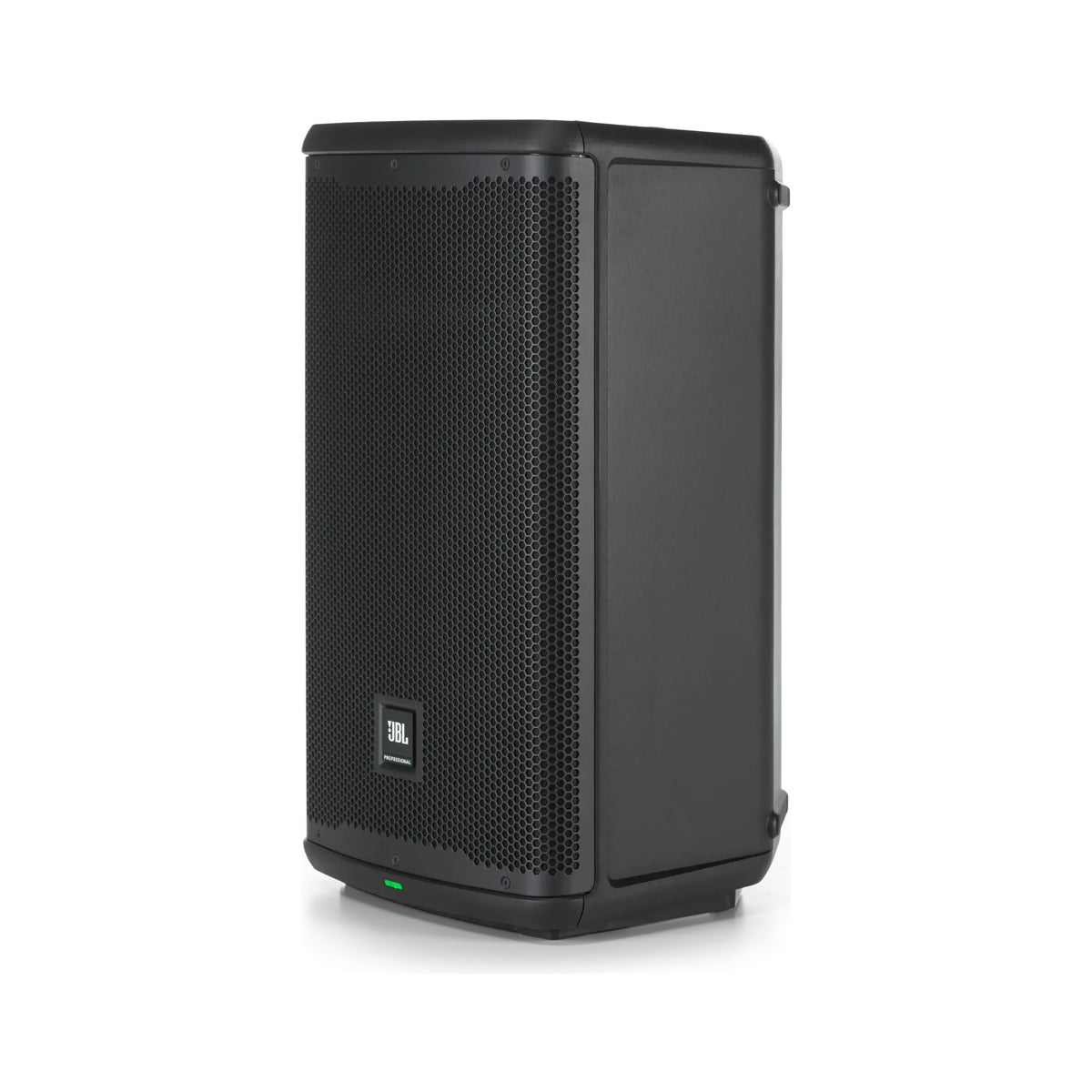

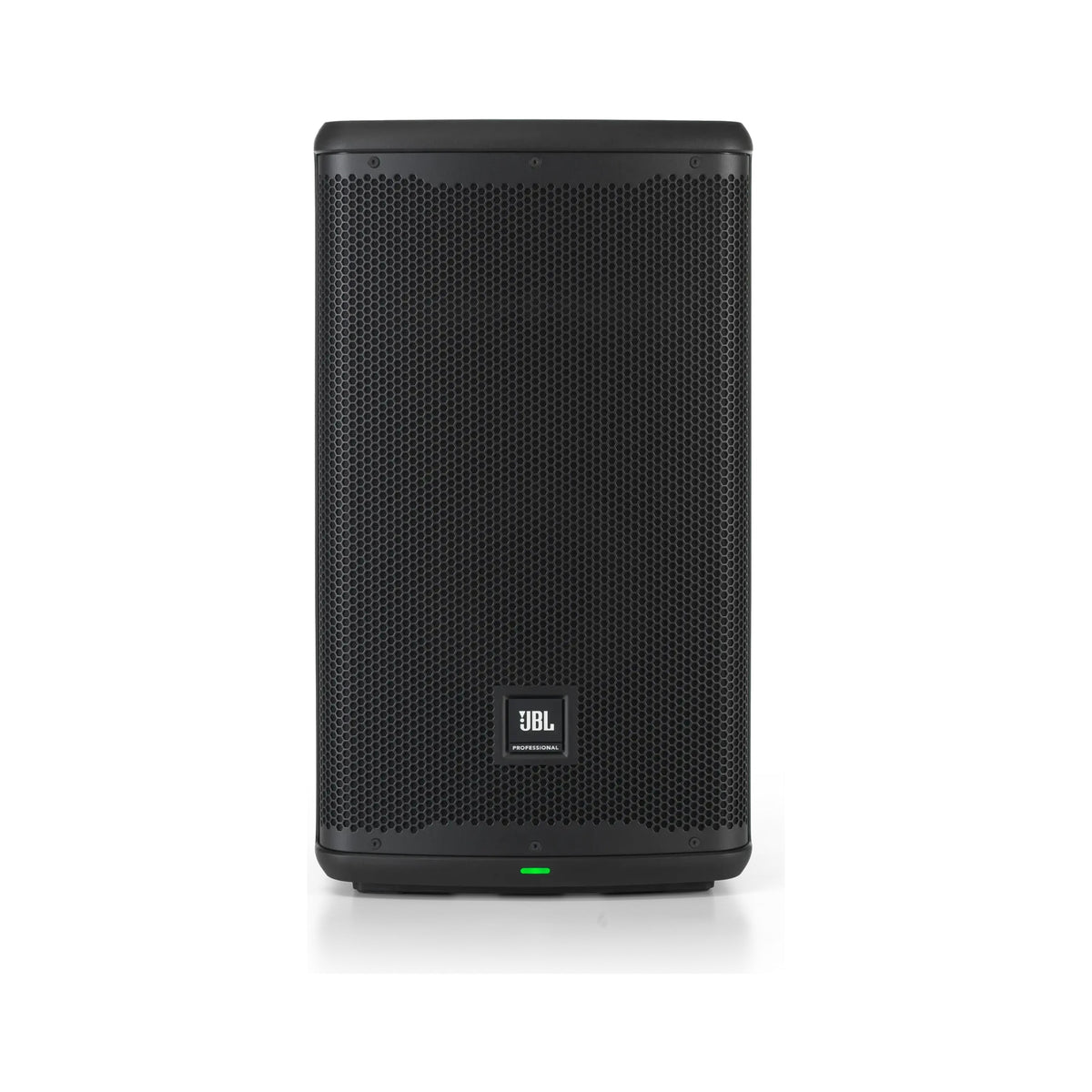

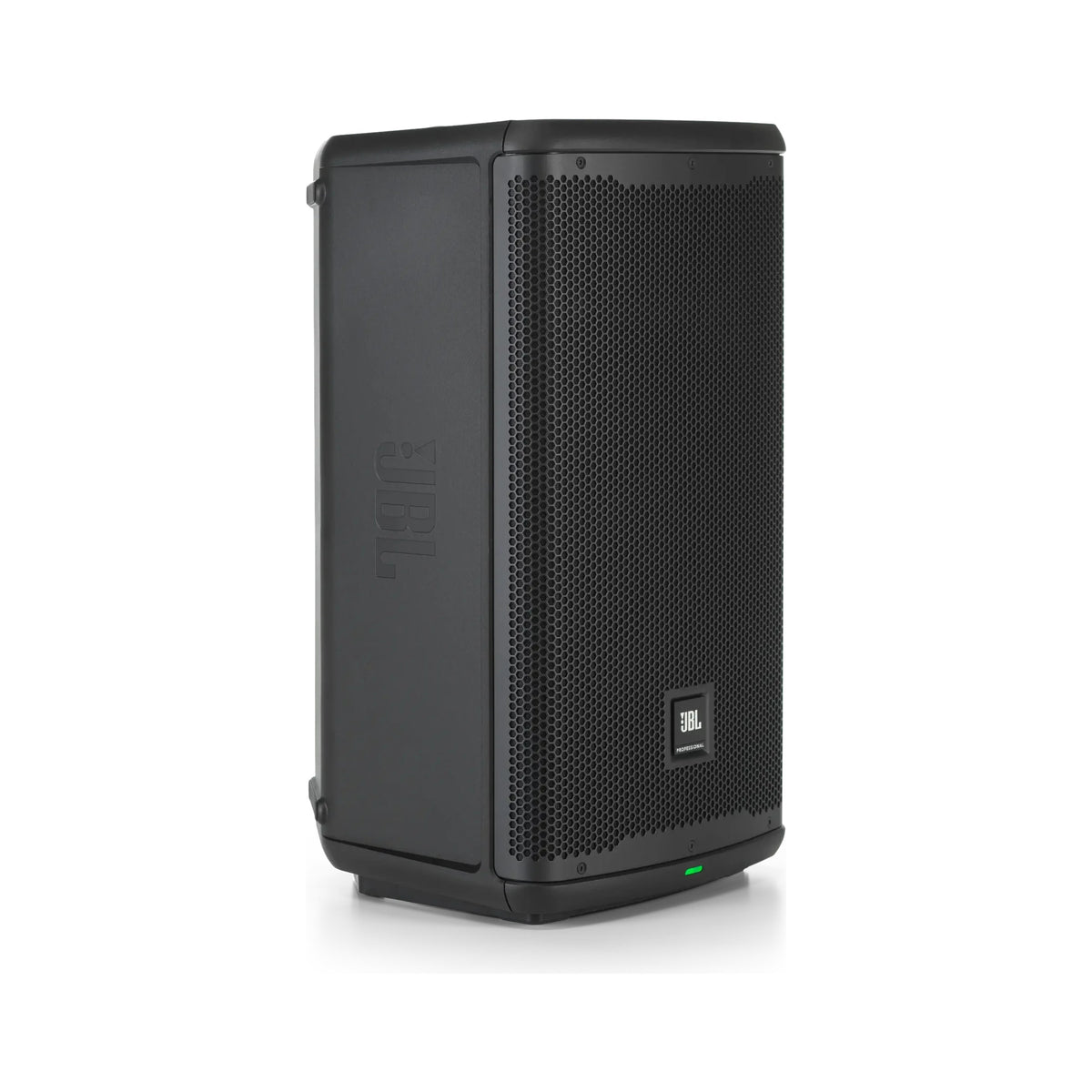

JBL EON710

The JBL EON710 10-inch powered PA loudspeaker delivers remarkable power, crystal-clear vocal projection, and effortless portability for performers, presenters, fitness instructors, and mobile DJs. Driven by an ultra-efficient 1,300-watt peak Class D amplifier, the EON710 pairs a custom 10-inch woofer with a 1-inch 2414H compression driver to produce balanced, room-filling sound across wide 110° x 60° dispersion. With comprehensive dbx DriveRack DSP processing, an onboard full-color backlit LCD display, Bluetooth 5.0 wireless audio streaming and BLE app control via the JBL Pro Connect app, the EON710 delivers top-tier performance in a compact, travel-friendly package.

Key Features

• 1,300W Peak Class D Amplification: High-efficiency power amplifier provides ample acoustic headroom and output up to 125 dB SPL.
• 10-Inch Custom Transducers: Re-engineered 10-inch ferrite woofer and 1-inch compression driver provide clear audio reproduction down to 52 Hz.
• Ultra-Wide Coverage Pattern: 110° horizontal by 60° vertical dispersion ensures every member of the audience hears uniform sound.
• Advanced dbx DSP Processing: Includes 8-band Parametric EQ, Automatic Feedback Suppression (AFS), music ducking, and 100ms alignment delay.
• Integrated 3-Channel Digital Mixer: 2 combo XLR/TRS inputs with independent level knobs and 1 XLR thru output for easy daisy-chaining.

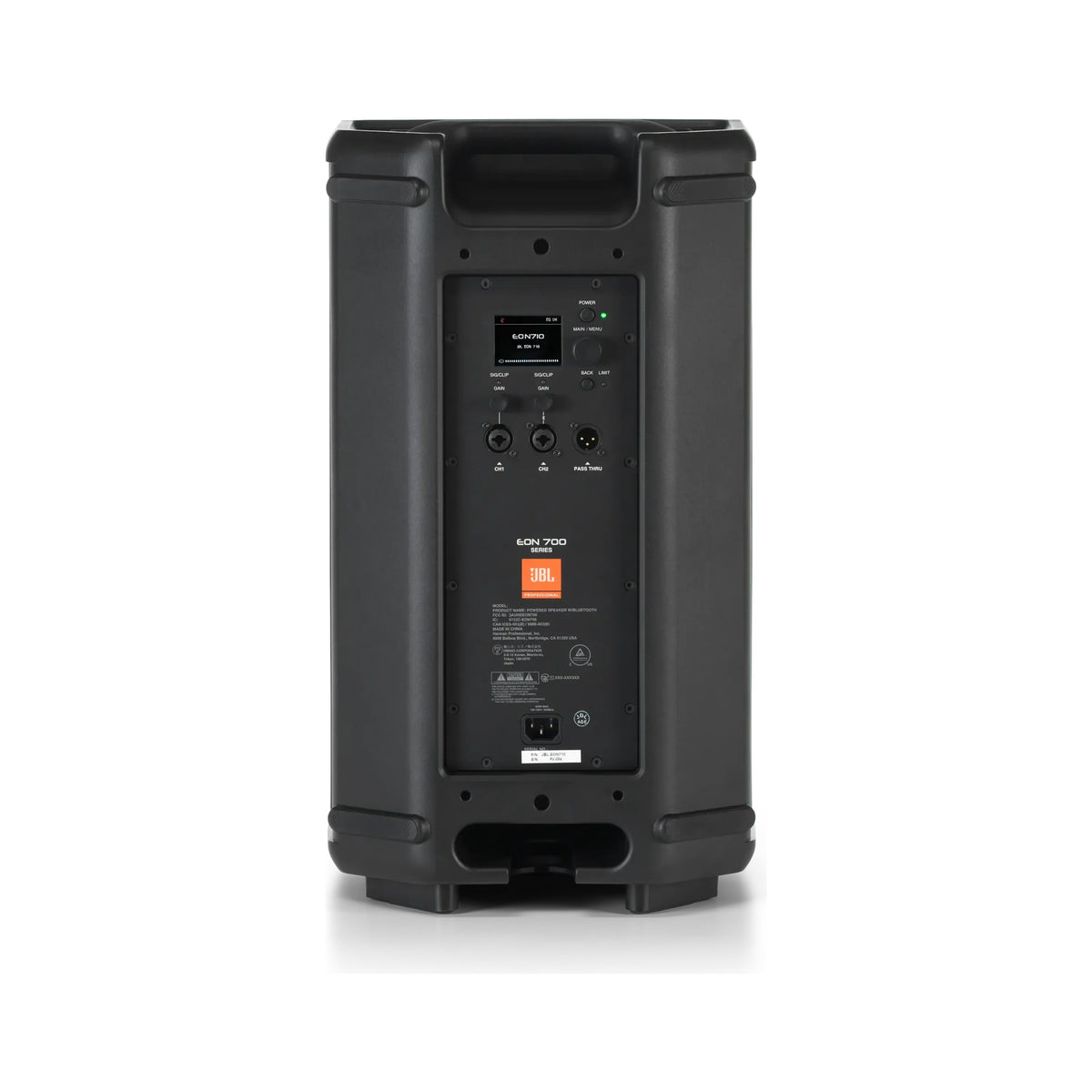

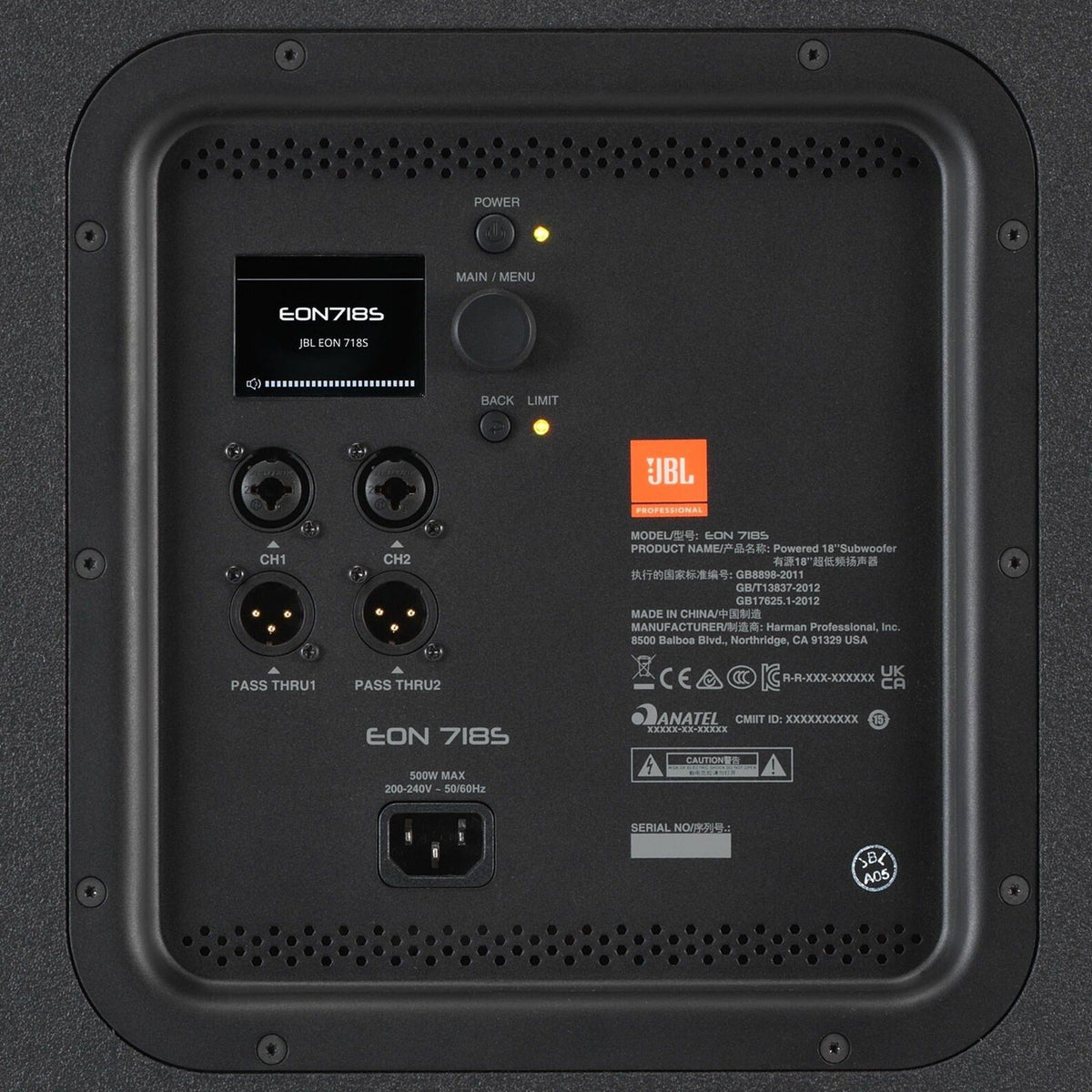

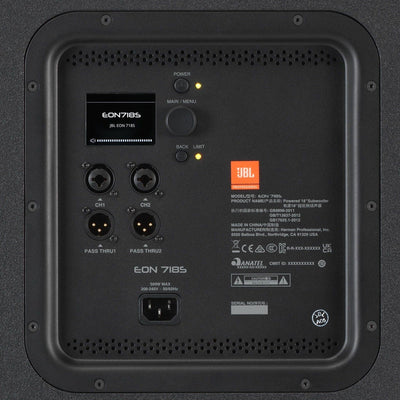

• Backlit Color LCD Screen: High-visibility display on the rear panel enables fast, direct adjustment of presets and DSP functions.

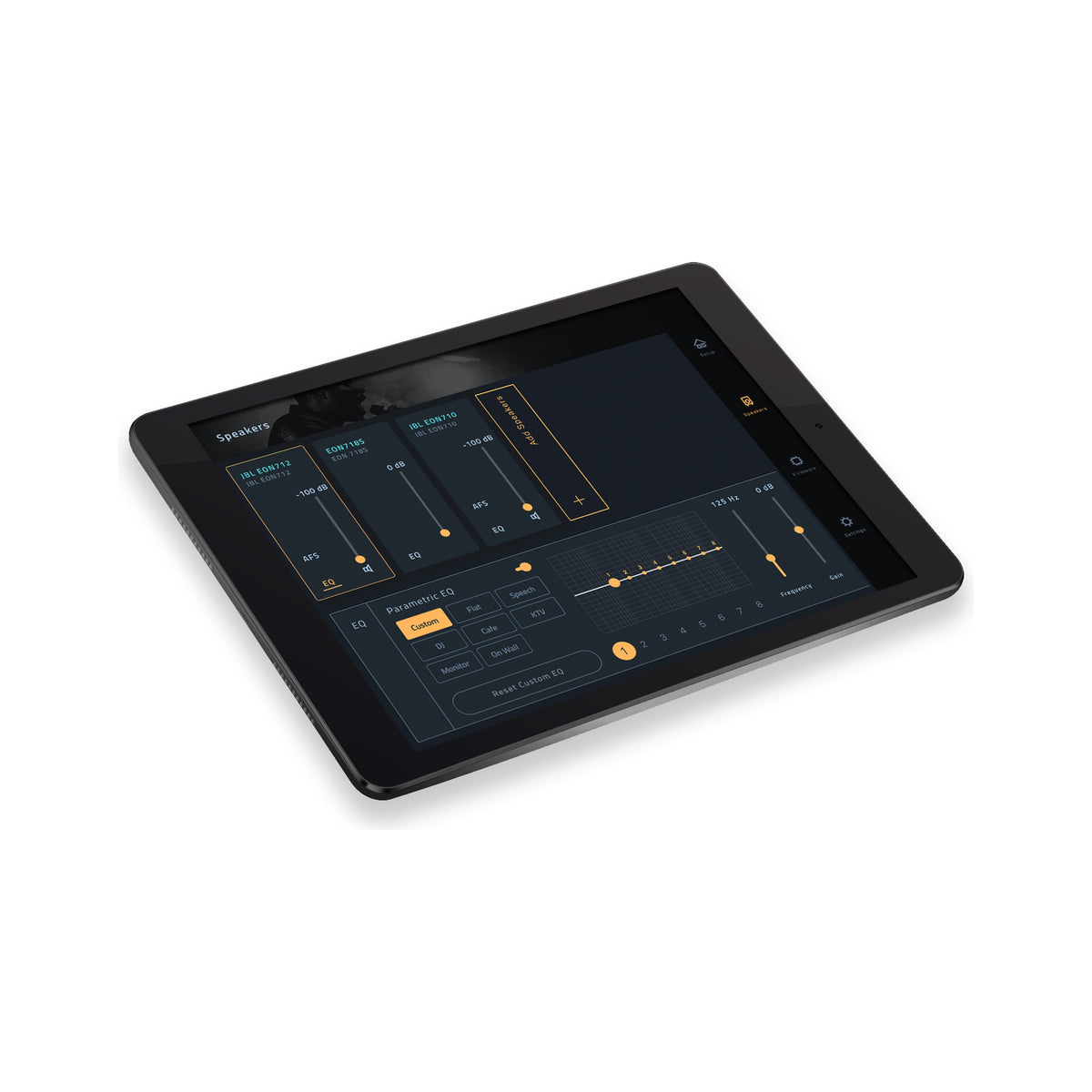

• Bluetooth 5.0 Streaming & BLE Control: Wirelessly stream audio from any smart device and adjust up to 10 speakers using the JBL Pro Connect app.

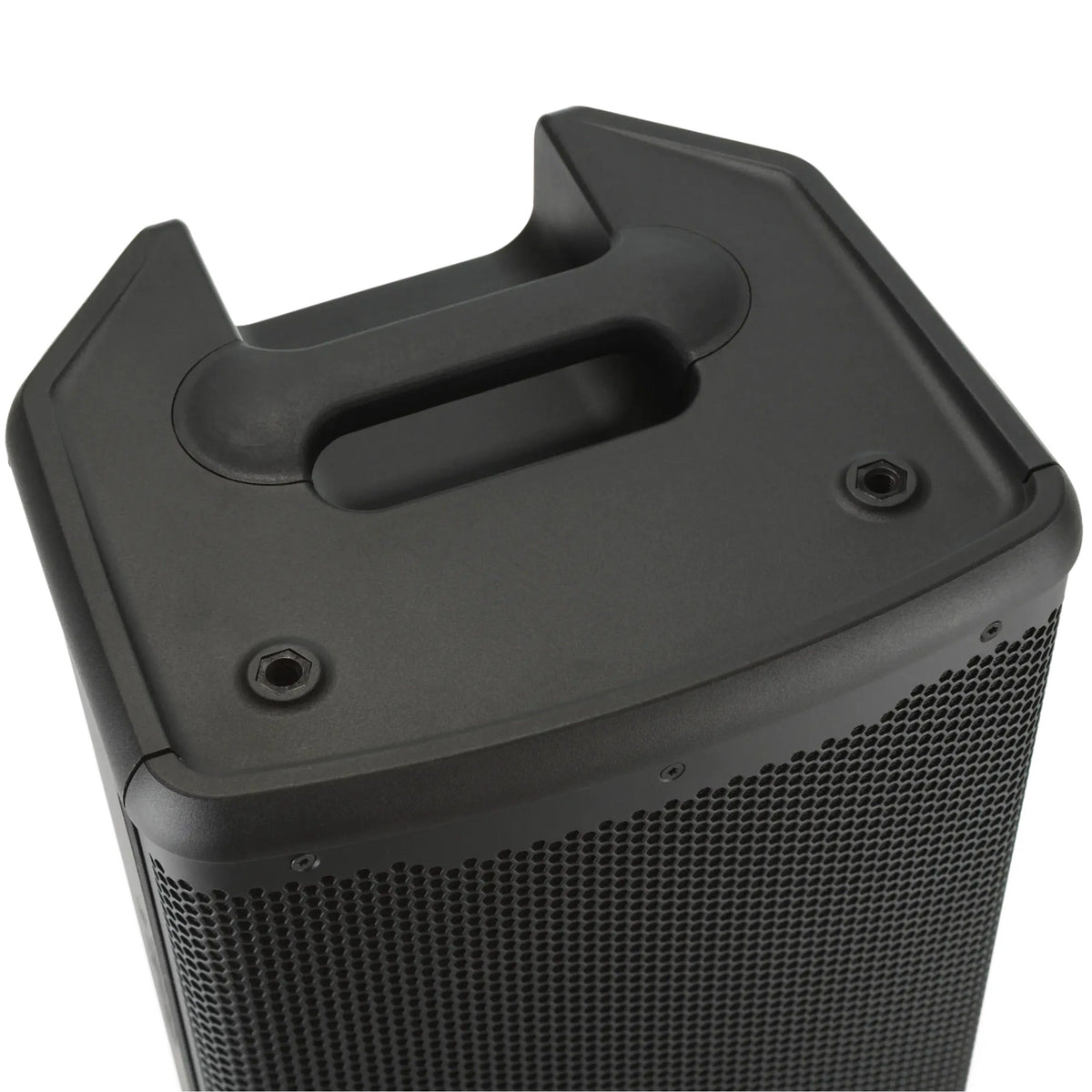

• Lightweight & Road-Ready: Rugged polypropylene composite cabinet with ergonomic top handle, 36mm pole socket, and 4 x M10 suspension points.

Technical Specifications

• System Type: 10-Inch Two-Way Powered Loudspeaker
• Power Rating: 1,300 W Peak / 650 W Continuous (Class D)
• Frequency Response (±3 dB): 65 Hz – 20 kHz
• Frequency Range (-10 dB): 52 Hz – 20 kHz
• Coverage Pattern: 110° Horizontal x 60° Vertical
• Maximum SPL: 125 dB peak
• LF Driver: 10" Custom Ferrite Magnet Woofer (2.0" voice coil)
• HF Driver: 1" 2414H-1 Neodymium Compression Driver
• Inputs / Outputs: 2 x XLR/TRS Combo Jacks, 1 x XLR Pass-Thru Output
• Mounting / Rigging: 36mm Pole Mount Socket, 4 x M10 Suspension Points
• Dimensions (H x W x D): 587 x 332 x 300 mm / 23.1" x 13.1" x 11.8"
• Net Weight: 11.9 kg / 26.2 lbs

What's in the Box

• 1 x JBL EON710 Powered 10-Inch Loudspeaker
• 1 x AC Power Cable (2m)
• 1 x Quick Start Guide
• 1 x Safety & Warranty Sheet
