JBL-EON712

The JBL EON712 12-inch powered PA loudspeaker represents a major leap forward in innovation, acoustic precision, and power. Driven by an ultra-efficient 1,300-watt peak Class D amplifier, the EON712 delivers crisp, room-filling sound with a redesigned 12-inch woofer and JBL 2414H compression driver. Featuring cutting-edge dbx DriveRack DSP processing, an onboard full-color backlit LCD display, Bluetooth 5.0 audio streaming and BLE control via the JBL Pro Connect app, and a durable composite enclosure, this versatile loudspeaker is built to excel as a front-of-house main or floor wedge monitor.

Key Features

• 1,300W Peak Class D Amplification: High-efficiency Class D power drives transducers effortlessly, providing clean acoustic output up to 127 dB SPL.
• Redesigned Custom Transducers: Custom 12-inch ferrite woofer and 1-inch 2414H neodymium compression driver deliver smooth, uniform dispersion (100° H x 60° V).
• Comprehensive dbx DSP Technology: Advanced DSP suite includes 8-band Parametric EQ, Automatic Feedback Suppression (AFS), ducking, and 100ms speaker delay.
• Integrated 3-Channel Digital Mixer: 2 combo XLR/TRS inputs with independent gain controls and 1 XLR thru output for daisy-chaining.

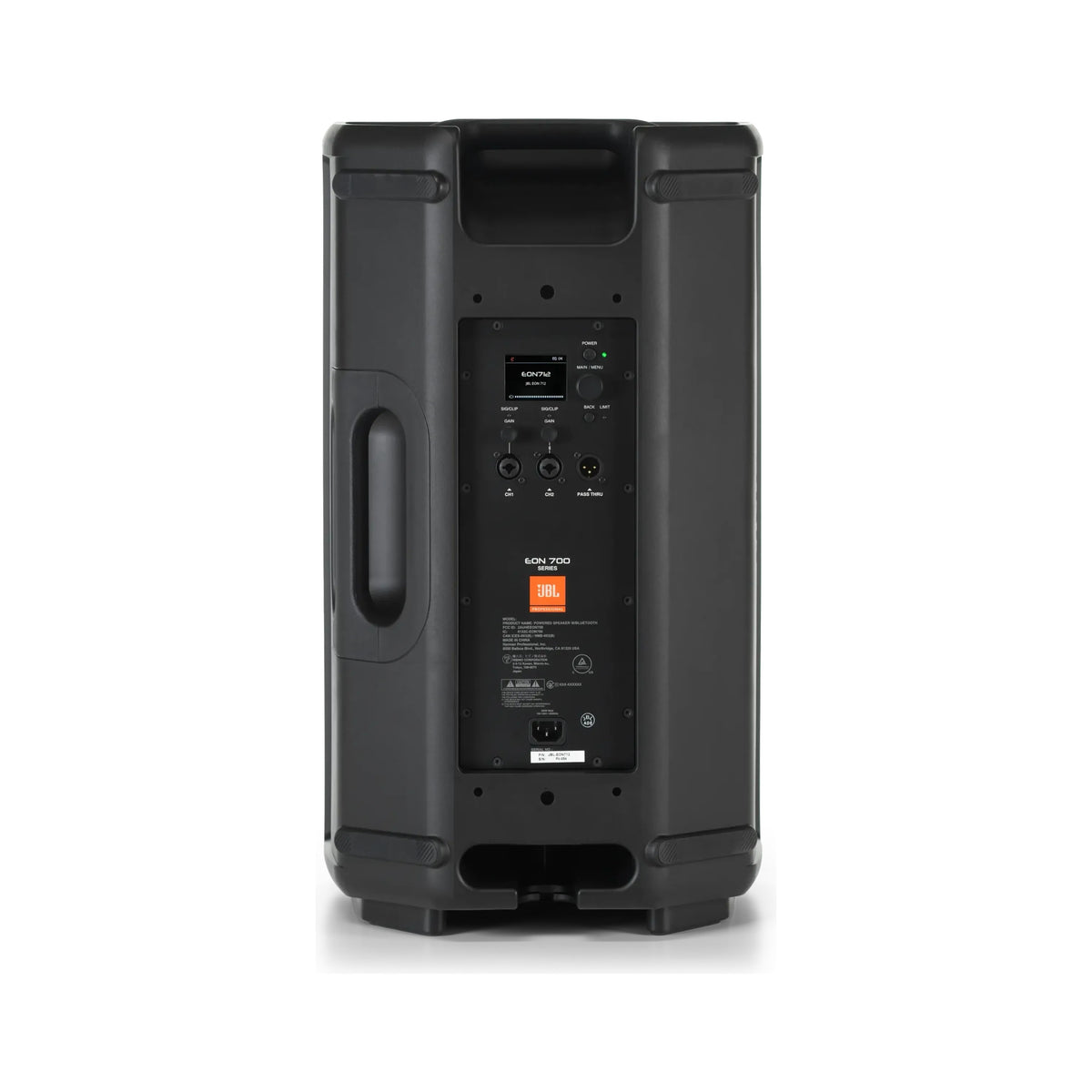

• Color Backlit LCD Screen: Easy-to-read full-color display on the rear panel enables quick navigation of presets and parameters.
• Bluetooth 5.0 Streaming & App Control: Stream wireless audio directly and manage up to 10 EON700 speakers wirelessly using the JBL Pro Connect app.

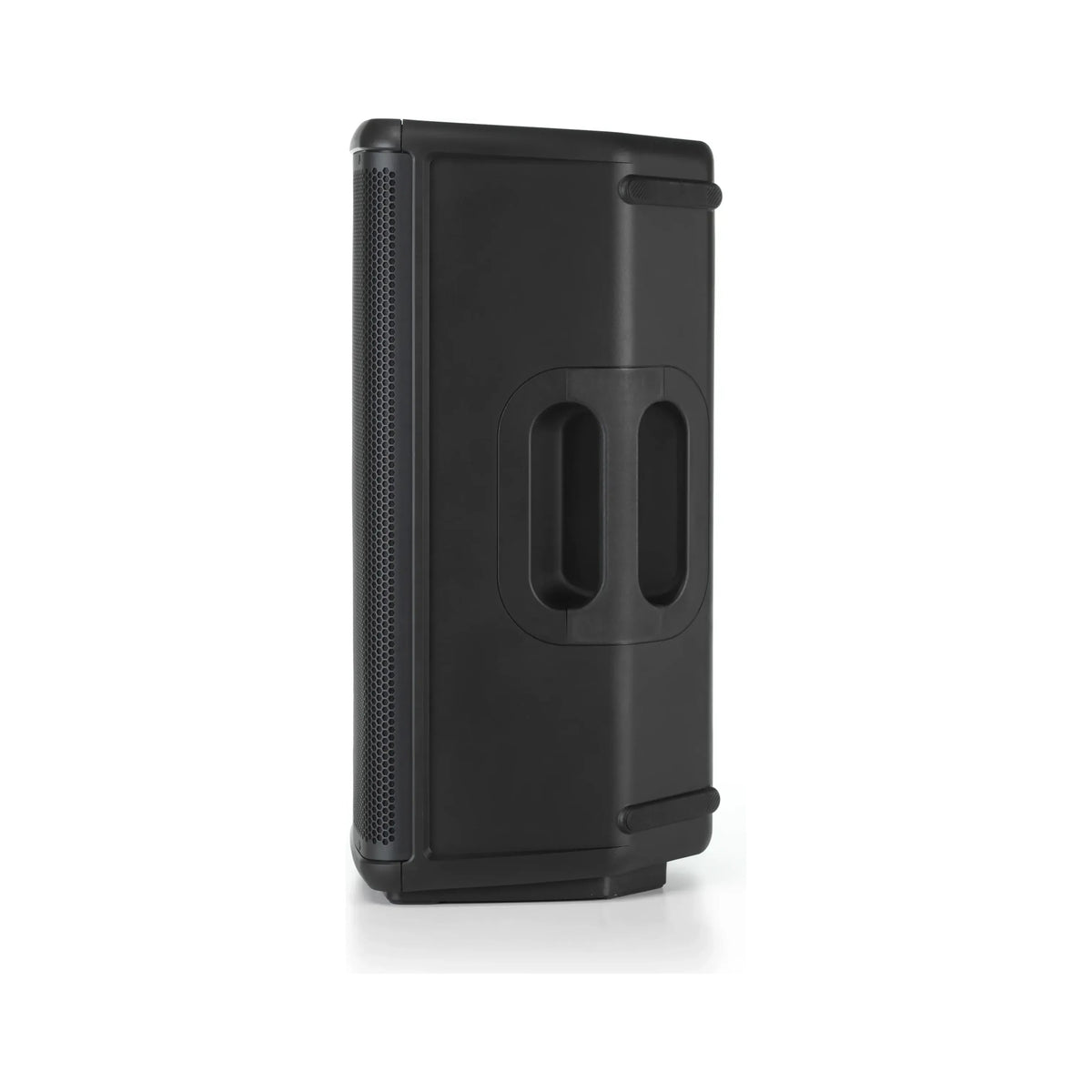

• Versatile Road-Ready Enclosure: Talc-filled polypropylene composite cabinet features dual ergonomic carry handles, suspension rigging points, and 36mm pole socket.

Technical Specifications

• System Type: 12-Inch Two-Way Powered Loudspeaker
• Power Rating: 1,300 W Peak / 650 W Continuous (Class D)
• Frequency Response (±3 dB): 60 Hz – 20 kHz
• Frequency Range (-10 dB): 50 Hz – 20 kHz
• Coverage Pattern: 100° Horizontal x 60° Vertical
• Maximum SPL: 127 dB peak
• LF Driver: 12" Custom Ferrite Magnet Woofer (2.0" voice coil)
• HF Driver: 1" 2414H-1 Neodymium Compression Driver
• Inputs / Outputs: 2 x XLR/TRS Combo Jacks, 1 x XLR Pass-Thru Output
• Mounting / Rigging: 36mm Pole Mount Socket, 4 x M10 Suspension Points
• Dimensions (H x W x D): 669 x 382 x 324 mm / 26.3" x 15.0" x 12.8"
• Net Weight: 14.5 kg / 32.0 lbs

What's in the Box

• 1 x JBL EON712 Powered 12-Inch Loudspeaker
• 1 x AC Power Cable (2m)
• 1 x Quick Start Guide
• 1 x Safety & Warranty Sheet
