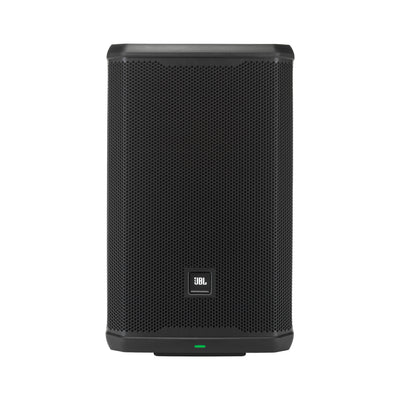

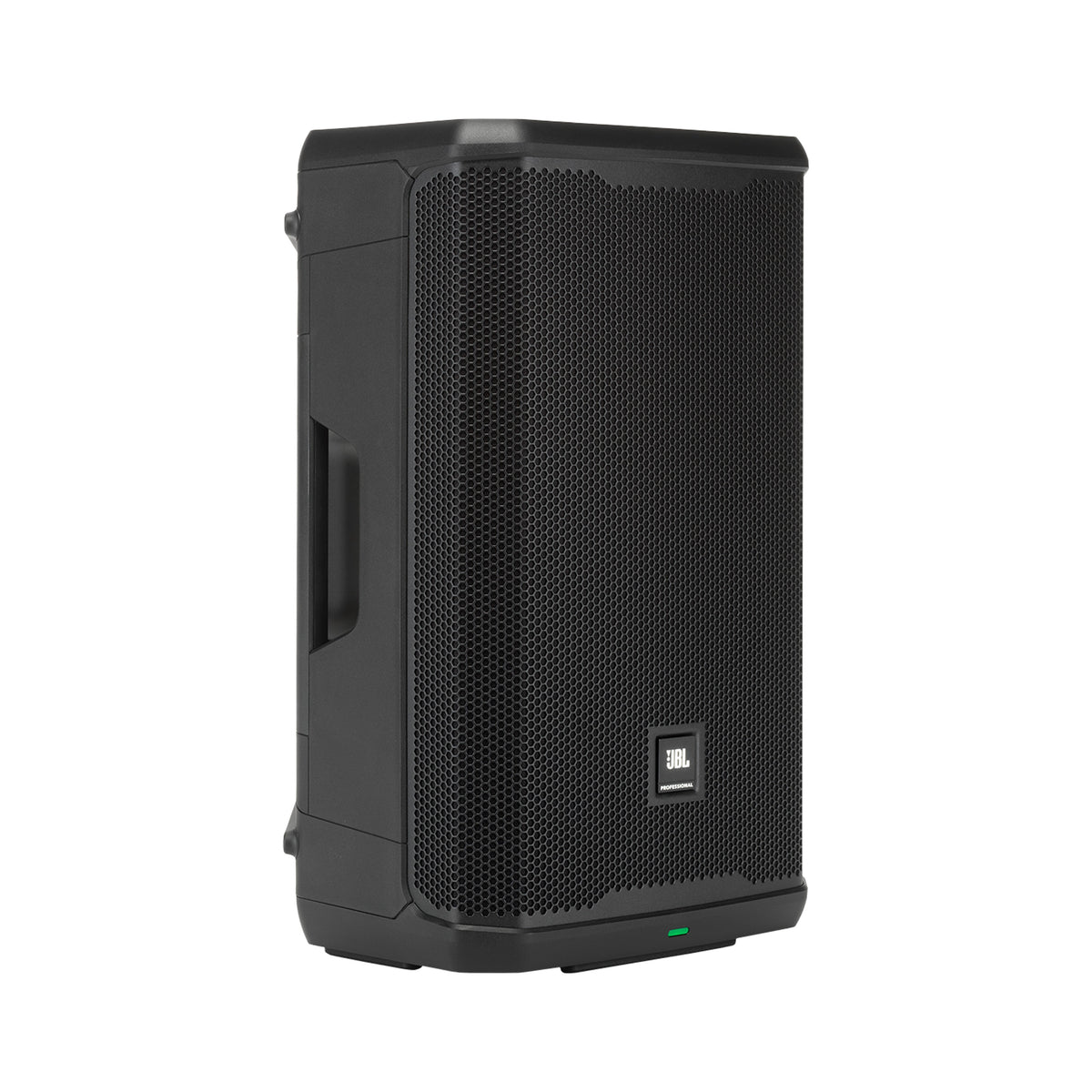

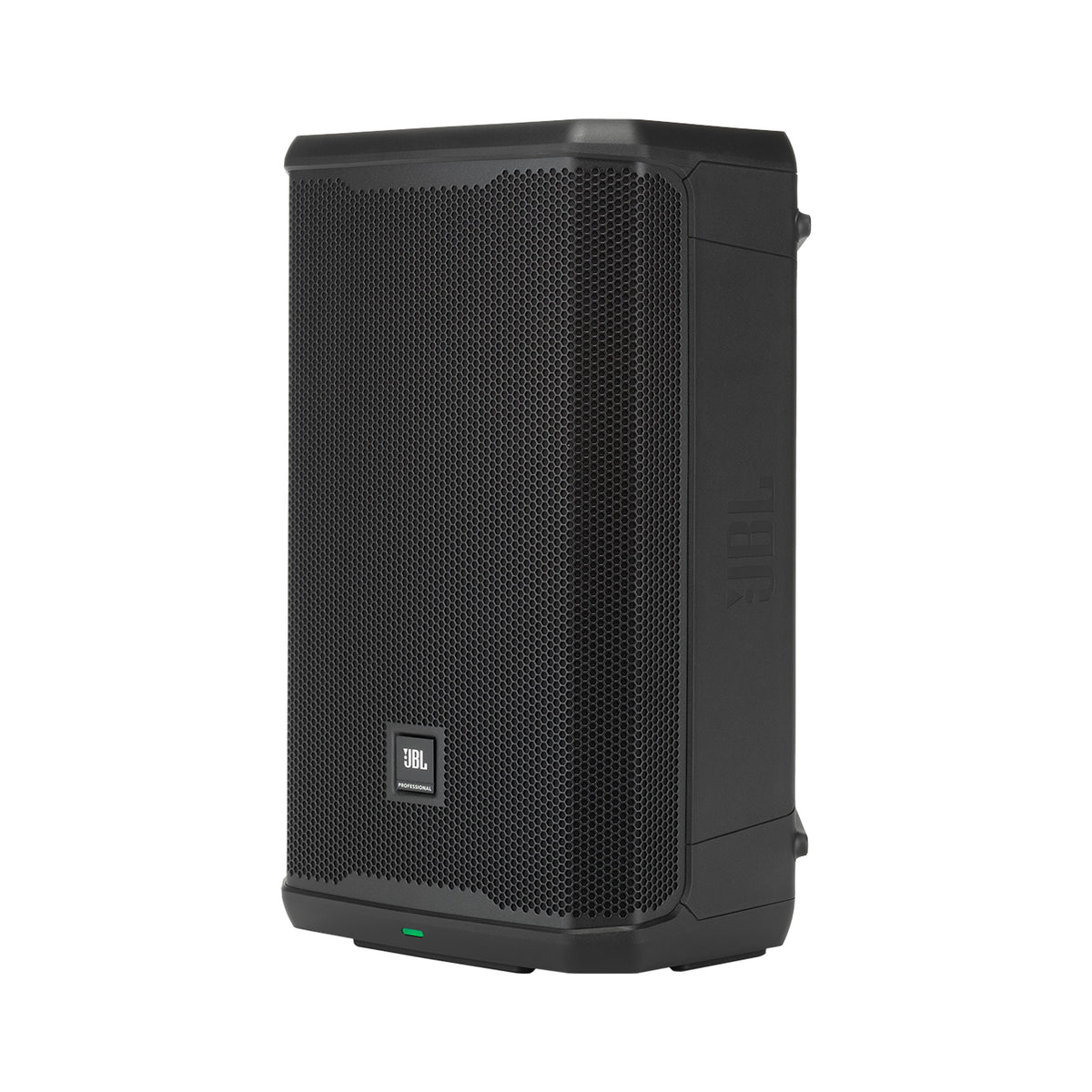

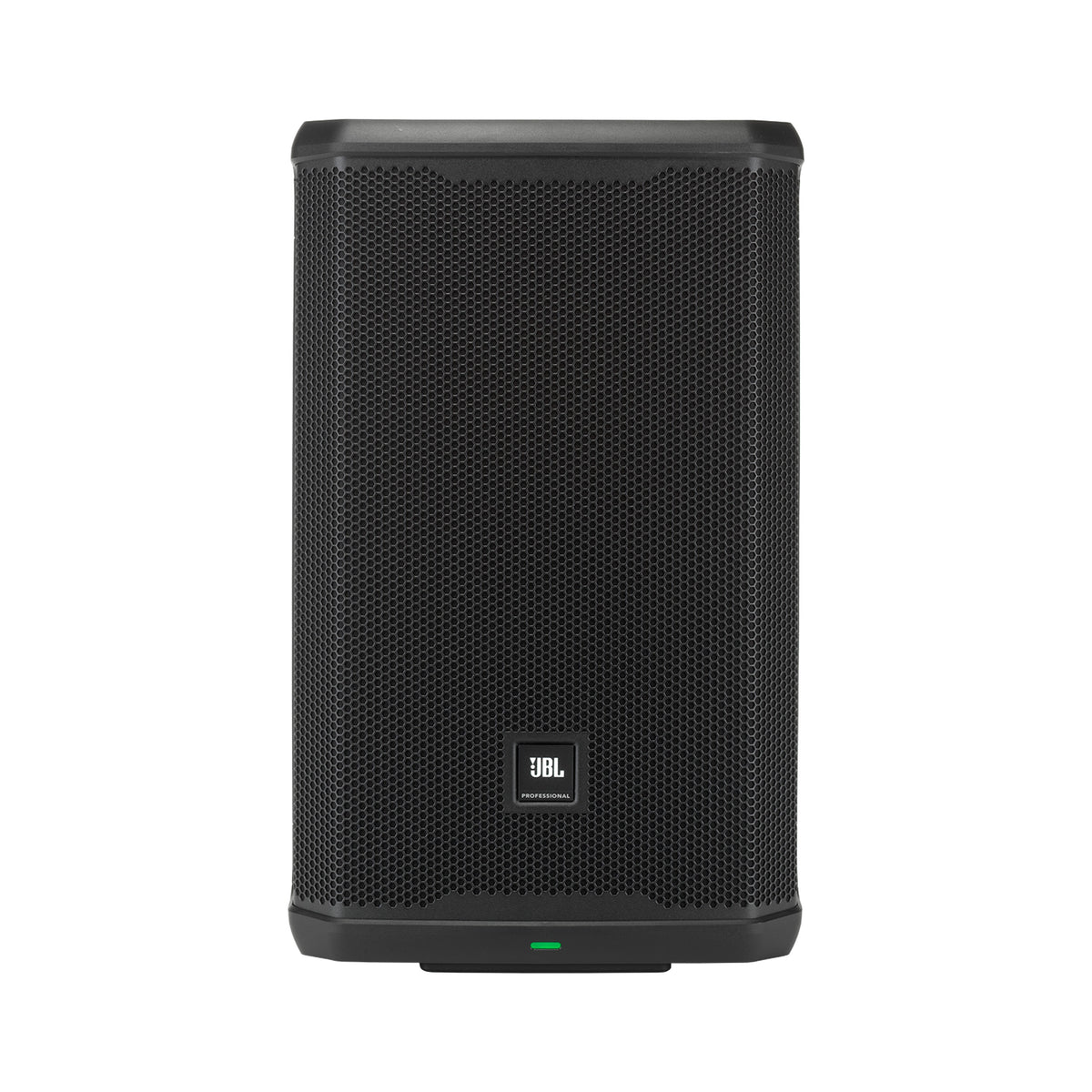

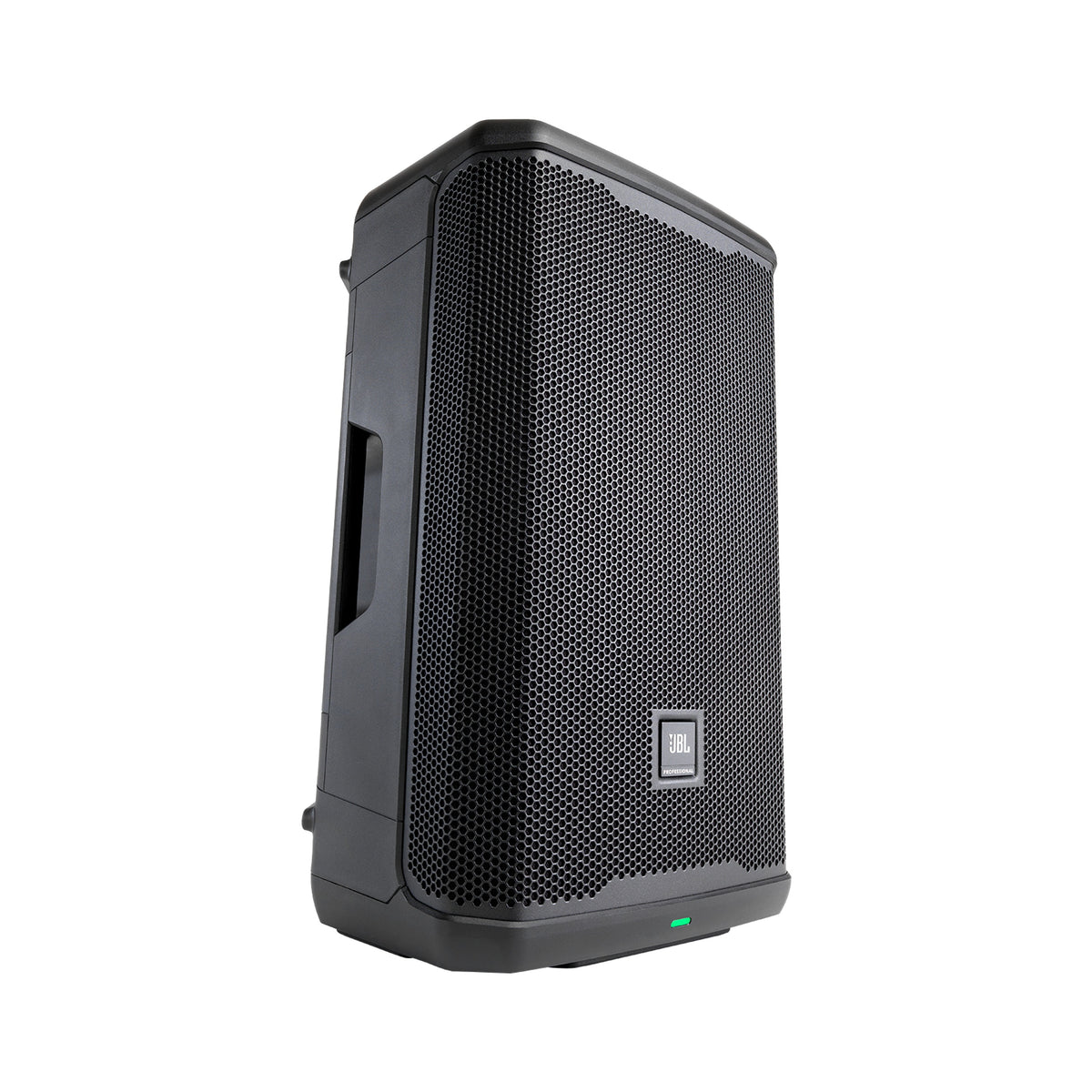

The JBL PRX912 powered two-way 12-inch main PA loudspeaker sets a new benchmark in professional portable sound reinforcement. Delivering an astonishing 2,000 watts of peak Class D power, the PRX912 features a next-generation 912G 12-inch woofer and a 1.5-inch 2408H-2 poly-annular diaphragm compression driver. With comprehensive dbx DriveRack DSP processing, an onboard full-color LCD screen, complete BLE wireless control via the JBL Pro Connect app, and road-ready composite construction with M10 suspension points, this versatile speaker is built for touring bands, DJs, corporate venues, and rental houses.

Key Features

• 2,000W Peak Class D Amplification: High-efficiency, ultra-clean Class D amplifier delivers effortless headroom and maximum acoustic output up to 132 dB SPL.
• Next-Generation Transducers: Custom 12-inch ferrite woofer paired with a 1.5-inch compression driver and custom horn geometry provides wide 90° x 50° dispersion and smooth frequency response.
• Comprehensive dbx DriveRack DSP: Access 12-band parametric EQ, live and fixed Automatic Feedback Suppression (AFS), soft system limiter with Soundcraft Overeasy, and speaker alignment delay (up to 180ms).

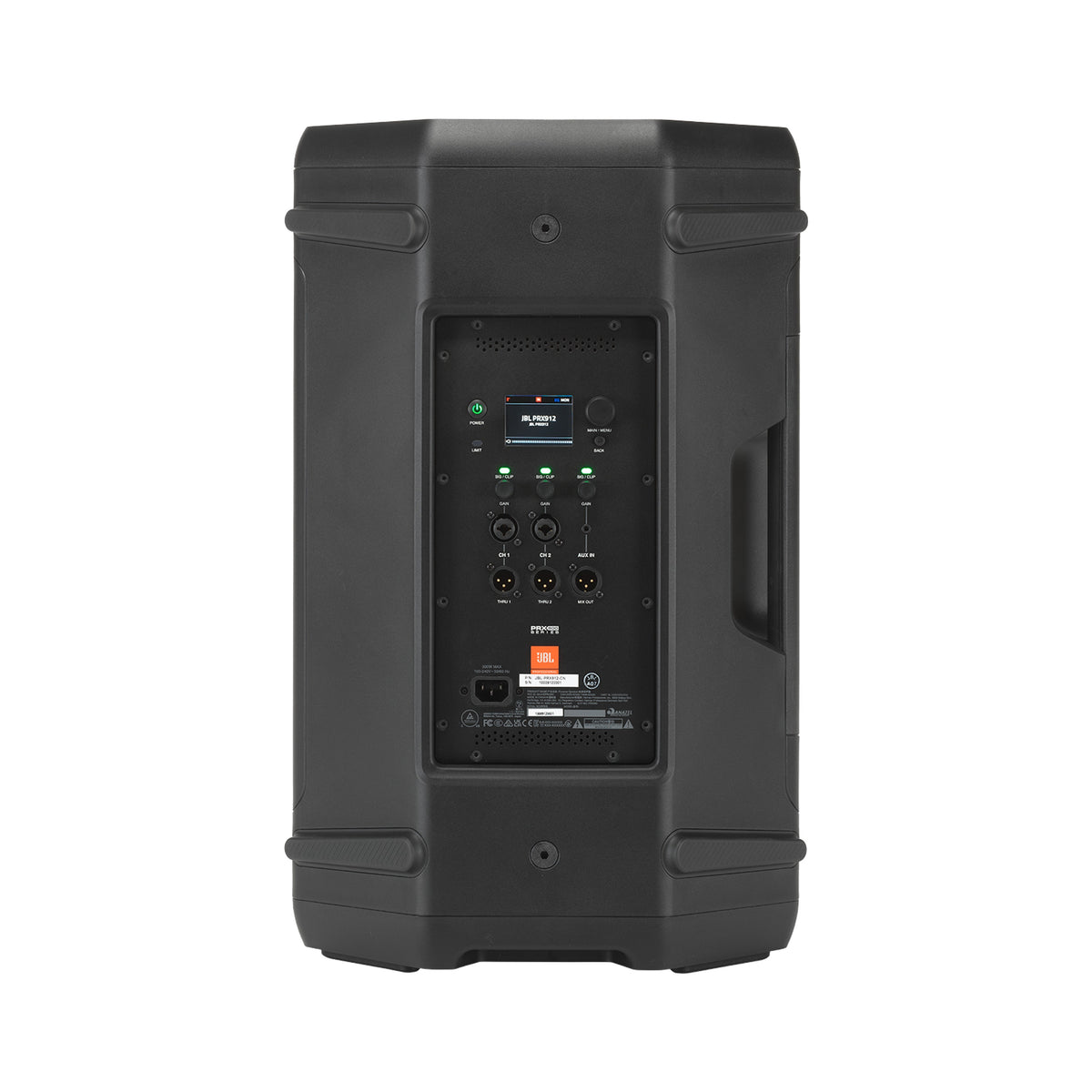

• Full-Color Backlit LCD Screen: High-resolution color screen on the rear panel enables quick, intuitive access to presets, channel levels, and system parameters.
• JBL Pro Connect App Integration: Complete BLE wireless control of up to 10 JBL PRX900, EON700, and PRX ONE speakers with group snapshots and global muting.

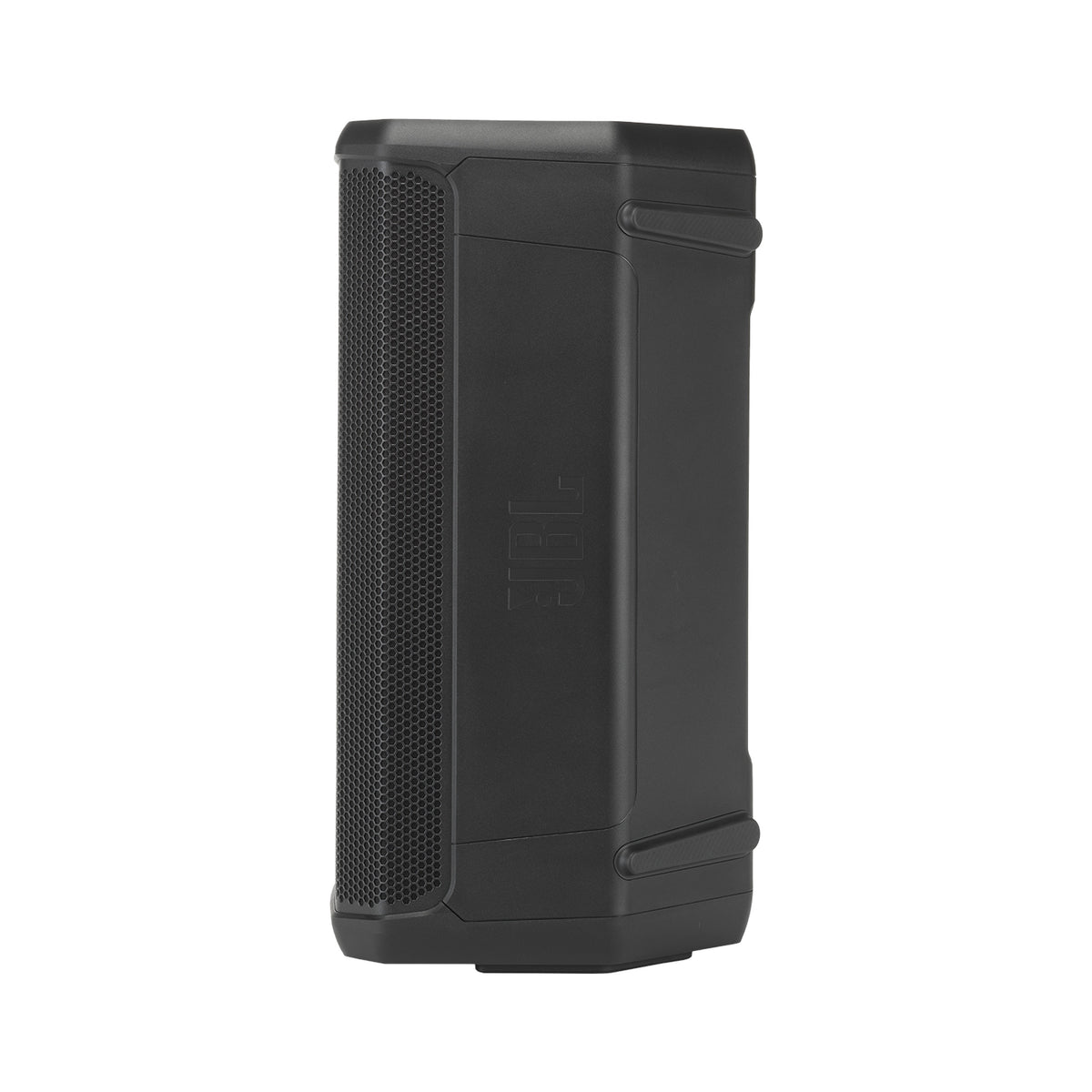

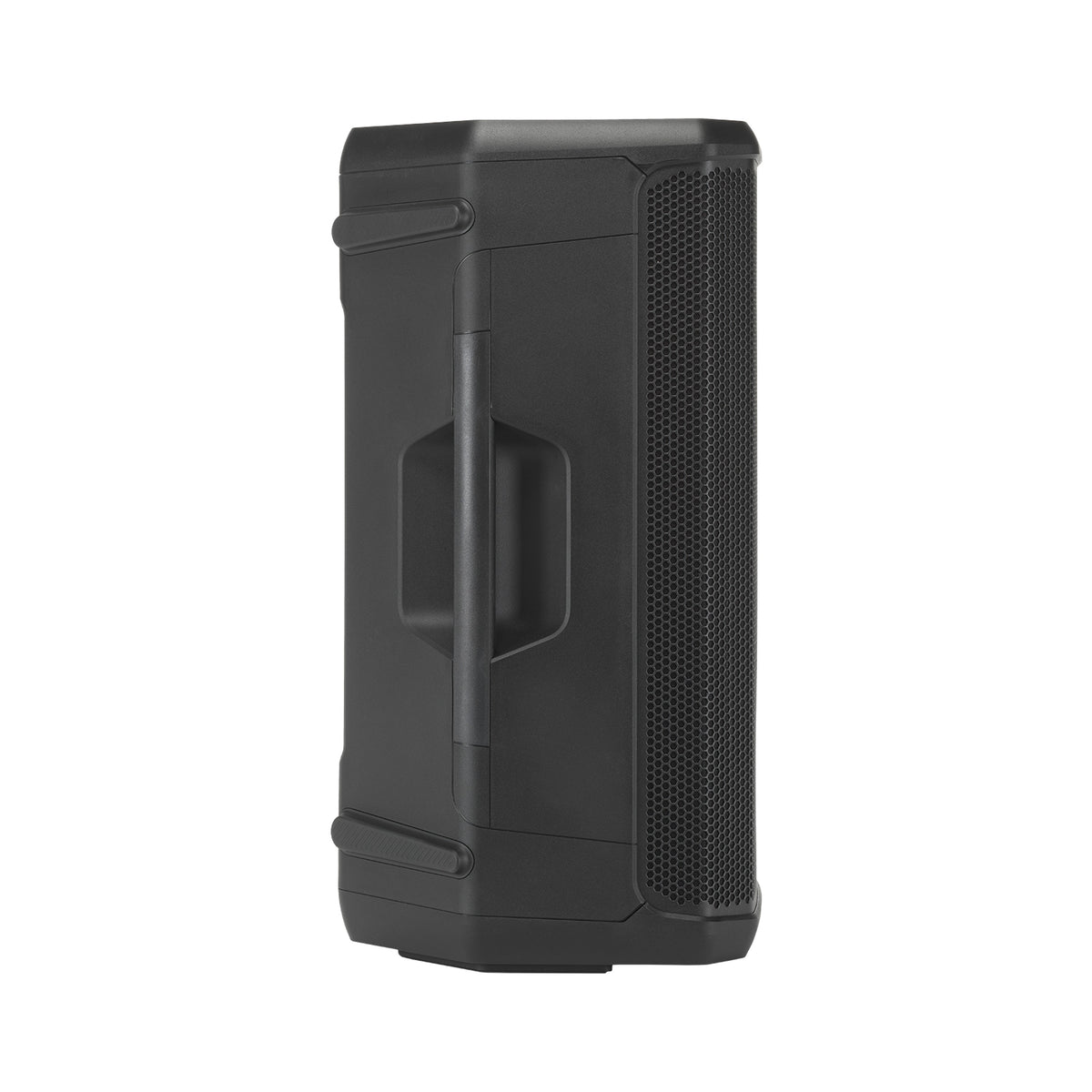

• Rugged Road-Ready Cabinet: Computer-modeled composite cabinet with internal structural ribbing provides unmatched rigidity, acoustic purity, and road-worthy durability backed by a 7-year warranty.

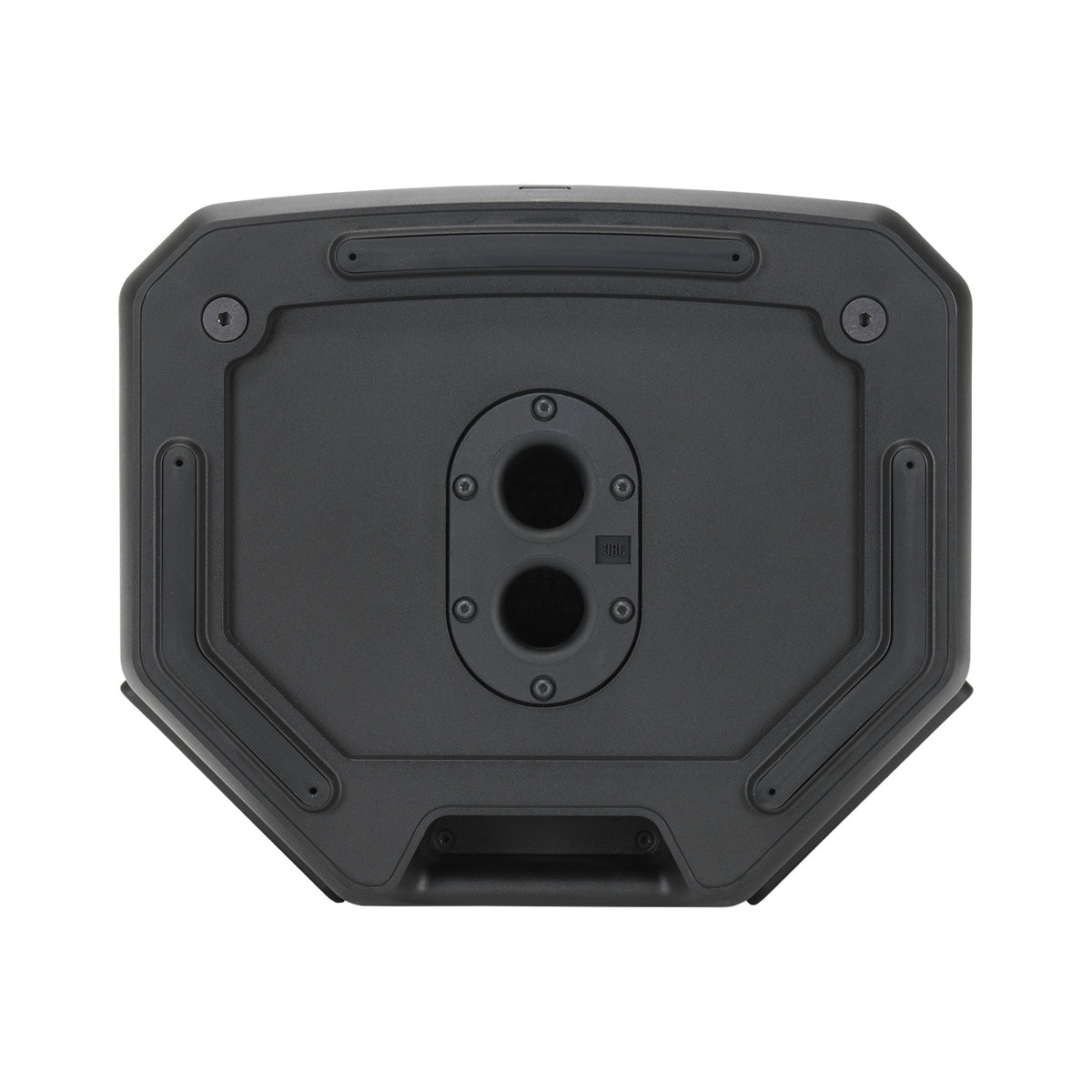

• Flexible Mounting Options: Dual 36mm pole-mount sockets (straight and 7° down-tilt) plus 6 integrated M10 suspension fly points for permanent installations.

Technical Specifications

• System Type: 12-Inch Two-Way Powered Loudspeaker
• Frequency Response (±3 dB): 65 Hz – 17 kHz
• Frequency Range (-10 dB): 50 Hz – 20 kHz
• Coverage Pattern: 90° Horizontal x 50° Vertical
• Maximum SPL: 132 dB peak
• Power Rating: 2,000 W Peak / 1,000 W Continuous (Class D)
• LF Driver: 12" 912G Ferrite Magnet Woofer (2.4" voice coil)
• HF Driver: 1.5" 2408H-2 Poly-Annular Diaphragm Compression Driver
• Inputs / Outputs: 2 x XLR/TRS Balanced Combo Jacks, 1 x 3.5mm AUX, 2 x XLR Thru Outputs, 1 x XLR Mix Out
• Mounting: Dual 36mm Pole Socket (0° / 7° down), 6 x M10 Fly Points
• Dimensions (H x W x D): 636 x 394 x 332 mm / 25.0" x 15.5" x 13.1"
• Net Weight: 19.5 kg / 43.0 lbs

What's in the Box

• 1 x JBL PRX912 Powered 12-Inch Loudspeaker
• 1 x AC Power Cable (2m)
• 1 x Quick Start Guide
• 1 x Safety & Warranty Sheet
